Spuhr ISMS QDP-6016 36mm High (38mm) Quick Detach 0 MOA Cantilever Mount
The Spuhr ISMS QDP-6016 is a Quick detachable cantilever mount featuring side clamp and dual levers on the left side of the mount, with tensioning screws on opposite side of the mount body. Absolute co-witness most clip-on NV units on AR platforms.
Allows the scope to be mounted 40 mm/1.57” farther forward than with a non-cantilever mount.
Spuhr ISMS QDP-6016 36mm High (38mm) Quick Detach 0 MOA Cantilever Mount
Picatinny mount for use on AR10 rifles
Rings: 36 mm
Tilt: 0 MIL/MOA

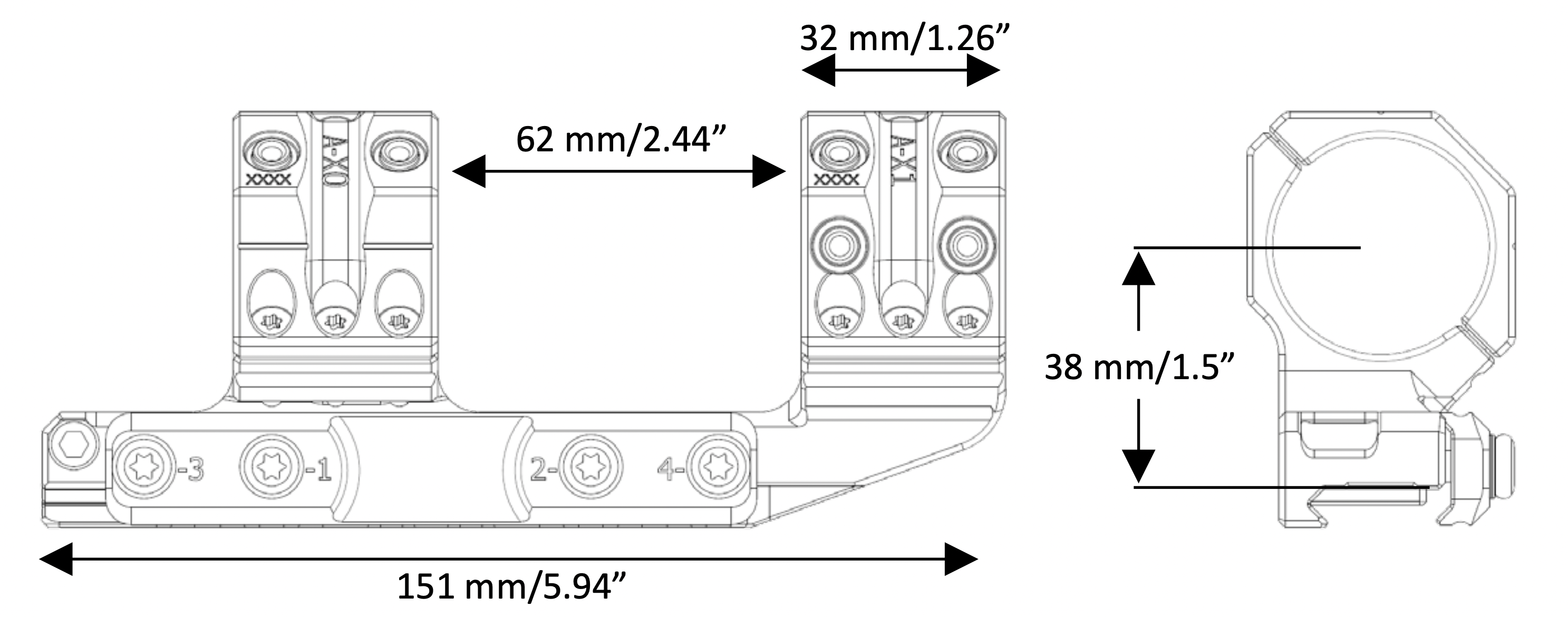

Height: 38 mm/1.5”
Length: 151 mm/5.94” (mount body only)
Weight: 289 g/10.2 oz
Interfaces: 8 sets
EAN: 7340150705275
10-degree wedge included
Spuhr ISMS QDP-6016 36mm High (38mm) Quick Detach 0 MOA Cantilever Mount
The QDP-6016 is a quick detachable version of the SP-6016, designed for use with 56 mm objectives on AR15/AR10 rifles with MIL-STD-1913 or STANAG 4694 rails, and has an absolute co-witness with back-up iron sights.
The QDP-6016 is a Quick detachable mount featuring side clamp and dual levers on the left side of the mount, with tensioning screws on opposite side of the mount body.
The IDEAL SCOPE MOUNT SYSTEM series of mounts feature eight set of interfaces to attach any of more than 40 different accessories and has a bubble level integrated in the rear plane of the mount body to prevent canting of the rifle.
The rings are diagonally cut for increased visibility of the elevation and windage turrets (US Patent 8,733,011). The mounts are machined from billet 7075 T651 aluminum and all aluminum parts are hardcoat anodized. The Torx 20 ring and clamping screws are zinc-nickel coated for corrosion resistance.
The screws come pre-waxed from the factory to ensure proper torque values. The mount is shipped with a manual and a “wedge” leveling key.
