SKU#QDP-5002 Spuhr

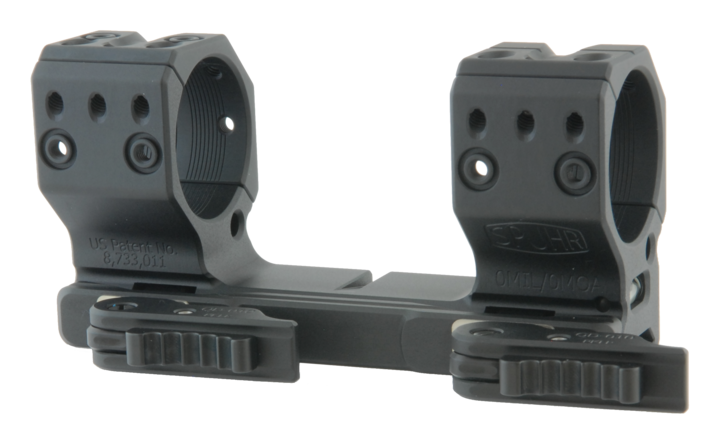

Spuhr ISMS QDP-5002 35mm High (38mm) Quick Detach 0 MOA Picatinny Mount
- Quick detachable mount featuring side clamp and dual levers on the left side of the mount, with tensioning screws on opposite side of the mount body.
- The IDEAL SCOPE MOUNT SYSTEM series of mounts feature eight set of interfaces to attach any of more than 40 different accessories and has a bubble level integrated in the rear plane of the mount body to prevent canting of the rifle.
- The rings are diagonally cut for increased visibility of the elevation and windage turrets (US Patent 8,733,011). The mounts are machined from billet 7075 T651 aluminum and all aluminum parts are hardcoat anodized. The Torx 20 ring and clamping screws are zinc-nickel coated for corrosion resistance.
- The screws come pre-waxed from the factory to ensure proper torque values. The mount is shipped with a manual and a “wedge” leveling key.
Select Type: 35mm High (38mm) 0 MOA
Product Information
Find Out More
Description
The Spuhr ISMS QDP-5002 Quick detachable mount featuring side clamp and dual levers on the left side of the mount, with tensioning screws on opposite side of the mount body.
The Brand New Spuhr ISMS Quick Detach QDP is brand new to the Spuhr range of ISMS scope mounts and is an extremely sturdy one-piece quick detach scope mount, with multiple interface surfaces for mounting accessories directly to the mount.
Built-in level. 45-degree split rings for better view of turrets. Various heights and tilts available.
- 0 MIL/0 MOA Height: 38 mm/1.5”
- Length: 126 mm/4.96” (mount body only)
- Weight: 277 g/9.8 oz
- 0 MIL/0 MOA Height: 38 mm/1.5”
- Length: 126 mm/4.96” (mount body only)
- Weight: 277 g/9.8 oz
- 10-degree wedge included
- Quick detachable mount featuring side clamp and dual levers on the left side of the mount, with tensioning screws on opposite side of the mount body.
- The IDEAL SCOPE MOUNT SYSTEM series of mounts feature eight set of interfaces to attach any of more than 40 different accessories and has a bubble level integrated in the rear plane of the mount body to prevent canting of the rifle.
- The rings are diagonally cut for increased visibility of the elevation and windage turrets (US Patent 8,733,011). The mounts are machined from billet 7075 T651 aluminum and all aluminum parts are hardcoat anodized. The Torx 20 ring and clamping screws are zinc-nickel coated for corrosion resistance.
- The screws come pre-waxed from the factory to ensure proper torque values. The mount is shipped with a manual and a “wedge” leveling key.
