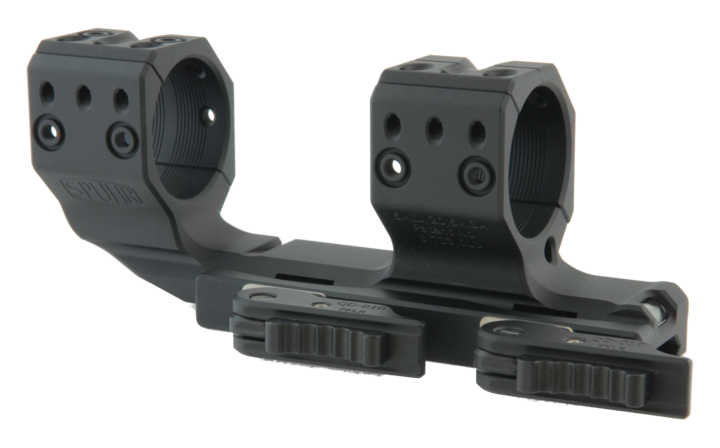

Spuhr ISMS QDP-4616 34mm High (38mm) 1.57" Offset Quick Detach 20 MOA Picatinny Mount
The Spuhr ISMS QDP-4616 is a quick detachable cantilever mount featuring side clamp and dual levers on the left side of the mount, with tensioning screws on opposite side of the mount body.
The Spuhr ISMS QDP-4616 offers an absolute co-witness which accomodates most clip-on NV units on AR platforms.
The cantilever design allows the scope to be mounted 40 mm/1.57” farther forward than with a non-cantilever mount.
The Spuhr ISMS QDP-4616 also comes equipped with 6 MIL/20.6 MOA of CANT allowing the shooter to keep their scope as close to the center of its adjustment range as possible.
The Spuhr ISMS QDP-4616 comes with the following measurements : Height: 38 mm/1.5” Length: 151 mm/5.94” (mount body only) Weight: 270 g/9.5 oz 10-degree wedge included
Picatinny mount for use on AR10 rifles
- Ring Diameter: 34 mm
- Tilt: 6 MIL/20.6 MOA
- Height: 38 mm/1.5”
- Length: 151 mm/5.94” (mount body only)
- Weight: 270 g/9.5 oz
- Interfaces: 8 sets
- EAN: 7340150705084
The IDEAL SCOPE MOUNT SYSTEM series of mounts feature eight set of interfaces to attach any of more than 40 different accessories and has a bubble level integrated in the rear plane of the mount body to prevent canting of the rifle. The rings are diagonally cut for increased visibility of the elevation and windage turrets (US Patent 8,733,011). The mounts are machined from billet 7075 T651 aluminum and all aluminum parts are hardcoat anodized. The Torx 20 ring and clamping screws are zinc-nickel coated for corrosion resistance. The screws come pre-waxed from the factory to ensure proper torque values. The mount is shipped with a manual and a “wedge” leveling key.
NOTE:
The QDP-4616 is a quick detachable version of the SP-4616, designed for use with 56 mm objectives on AR15/AR10 rifles with MIL-STD-1913 or STANAG 4694 rails, and has an absolute co-witness with back-up iron sights. The QDP4616 will fit most 34 mm scope tubes except for scopes with extended erector housings, such as the US Optics TPAL/EREK.
