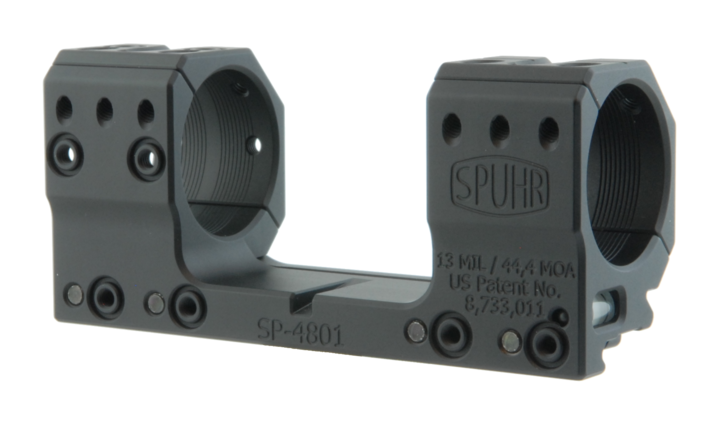

Sphur ISMS SP-4801 34mm Medium (30mm) 44.4 MOA Picatinny One-Piece Mount
Sphur ISMS SP-4801 34mm Medium (30mm) 44.4 MOA Picatinny One-Piece Mount
The Ideal Scope Mount System (ISMS) originated in a customer request to help develop a way to mount the optics to a rifle in such a way that the rings did not obscure the turrets of the scope. With traditional mounting solutions the user has a choice between obscuring either the elevation or the windage adjustments (and in some cases both!)
ISMS ; Ideal Scope Mount System
Extremely sturdy scope mount, with possibility to attach multiple optical accessories directly to the mount. Built-in level. 45-degree split of the rings provides unobstructed view of the knobs.
Durability
Prevents damage on scope due to flexing during heavy recoil or rough handling. The snipers rifle and the spotter’s carbine can have the same mount, enabling the use of the same or shared equipment and accessories.
Scope rotation
Innovative solution for indexing the rotation of the scope, using the included tool/gauge to index the scope correctly to the mount and gun. This is very important since if the scope is not properly indexed there will be an unintended lateral shift of the point of impact whenever the elevation is adjusted.
Mounting placements
Traditionally lasers have been mounted on the forend of the rifle, a solution with drawbacks. For the same reasons you don’t want your barrel to touch the forend you don ́t want the sights to be mounted on the forend. Our mounting system have up to seven interfaces for accessories, and the laser can easily be attached to the scope mount, providing the advantage of undisturbed laser and having the weight close to the centre of the gun instead of forward.
Tilt
Mounts can be delivered in various tilts. The tilt is clearly engraved on the mount, in both MIL and MOA.
Accessible and readable dials. The rings are cut at 45 degrees instead of horizontaly, providing several advantages; the screws holding the parts together are not obscuring the knobs, thus the shooter can quickly determine the settings of the knobs.It also gives the shooter a horizontal reference line helping the shooter subconsciously to avoid canting the rifle to the side.
The rings have index marks on the top and right side, making low knobs more easily readable.
Accessories
Provides use of various accessories such as angle cosine indicator (ACI), back up sights, lasers, illuminators, night vision mounts etc. with a minimized ”footprint”. With traditional mounts this can only be achieved if there is sufficient space on the middle tube for additional rings, which there rarely is. The ”Ideal Scope Mount System”™ have interface surfaces directly on the mount, making it possible to mount accessories either by Picatinny rails or as direct interfaces. A selection of interfaces for popular accessories are available, and others can be made to customer specifications.
Level
The sight mount have a level included in the rear of the mount.
Please note: This product has been discontinued.
Sphur ISMS SP-4801 34mm Medium (30mm) 44.4 MOA Picatinny One-Piece Mount
Picatinny mount for use on bolt action rifles
Rings: 34 mm
Tilt: 13 MIL/44.4 MOA
Height: 30 mm/1.18”
Length: 121 mm/4.76”
Weight: 224 g/7.9 oz
Interfaces: 7 sets
EAN: 7 340150700348
Sphur ISMS SP-4801 34mm Medium (30mm) 44.4 MOA Picatinny One-Piece Mount
The SP-4801 is designed for use on rifles with MIL-STD-1913 or STANAG 4694 rails, and is especially suitable for bolt action rifles with 1-piece Picatinny rails. The SP-4801 will fit most 34 mm scope tubes except for scopes with extended erector housings, such as the US Optics TPAL/EREK and the Nightforce BEAST.
10-degree leveling wedge
This simple tool fits in a 10-degree slot on the mount while mounting the scope and works against the bottom of the scope to ensure a perfectly level scope.
4 numbered and indexed mounting torx heads
Built in level
Even the slightest variance in how the mount is attached to a weapon can alter the point of impact. To resolve this, the ISMS has numbered screw holes so you can attach the mount the same way each time. The amount of torque applied to the mount can also cause unwanted variance so Spuhr has placed index marks on the screw head so you can put the exact same amount of torque on your mount no matter how often you remove the mount.
With a quick glance from your left eye you can get an instant check of your level without leaving your shooting position. The built in level is always protected in the rear of the mount and is not a risk of shifting or being broken off on the move.
Accessory interface :
Every mount consist of 7-8 mounting interfaces where you can attach nearly anything. The interface consists of two threaded M4 holes that are depressed in a conical hole to perfectly fit the individual attachment interfaces (sold separately) with absolutely no play in the joint.
