Sightron SVIII ED 5-40x56 FFP Zero Stop 0.1 Mrad Illuminated LRM Rifle Scope (+FREE 40mm Rings)
The SVIII 5-40x56 ED is a Zero-Stop First Focal Plane Rifle Scope with Free 40mm Rings features ED glass, a new internal zero-stop mechanism, and a First Focal Plane illuminated LRM reticle.
Designed for long-range target shooting and hunting, the scope provides 20 MILS of windage and 40 MILS of elevation with .1 Mil tactical knobs.
The windage and elevation knobs have 10 MILS per revolution. The new 40 mm body tube is waterproof, shockproof and nitrogen charged. The minimum focus is 10 meters.

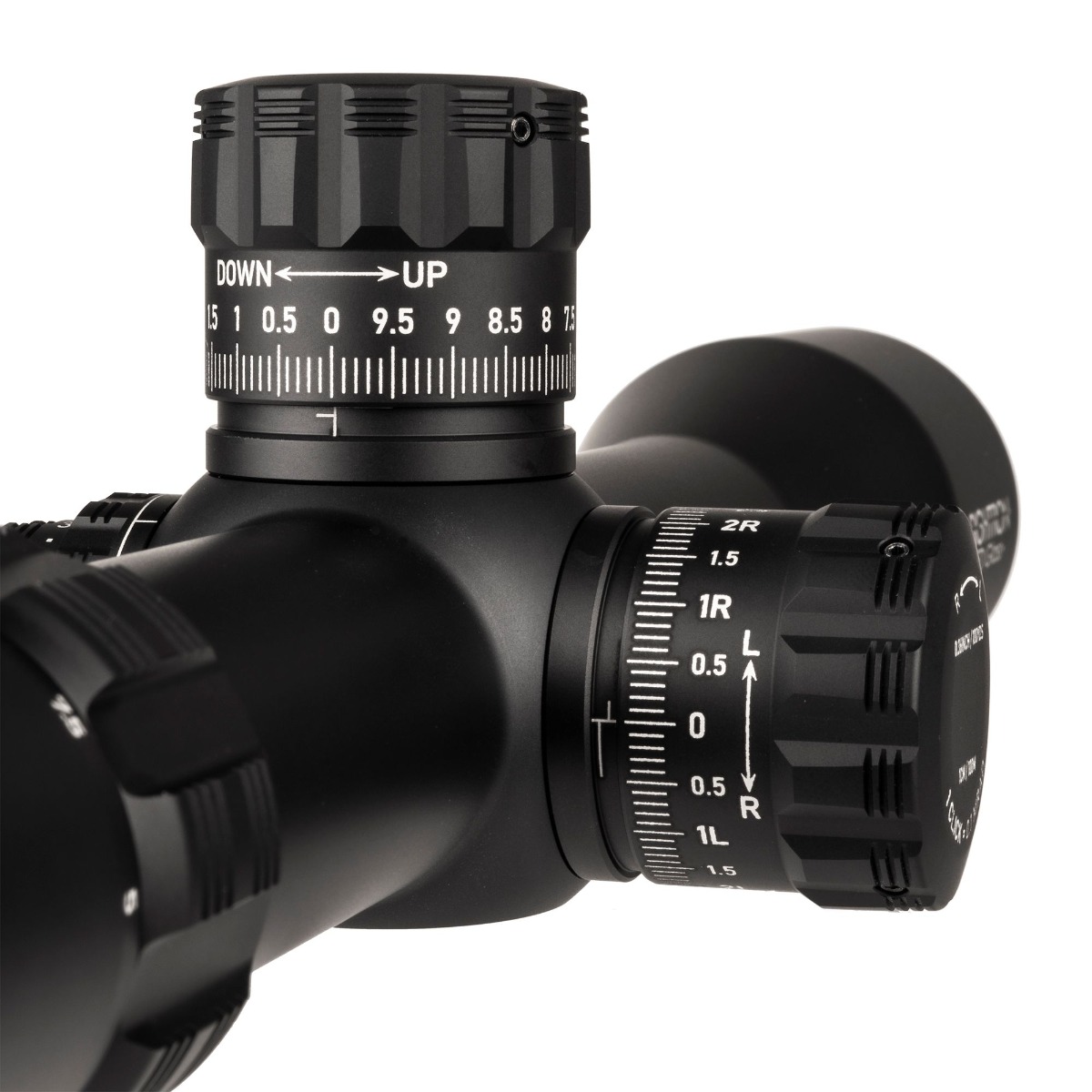

The SVIII features ED (Extra-low Dispersion) glass provides Long Range Shooters the brightness and clarity required for accurate target acquisition. The large oversized tactical knobs are finished in black matte with high visibility markings to quickly identify your scopes settings.

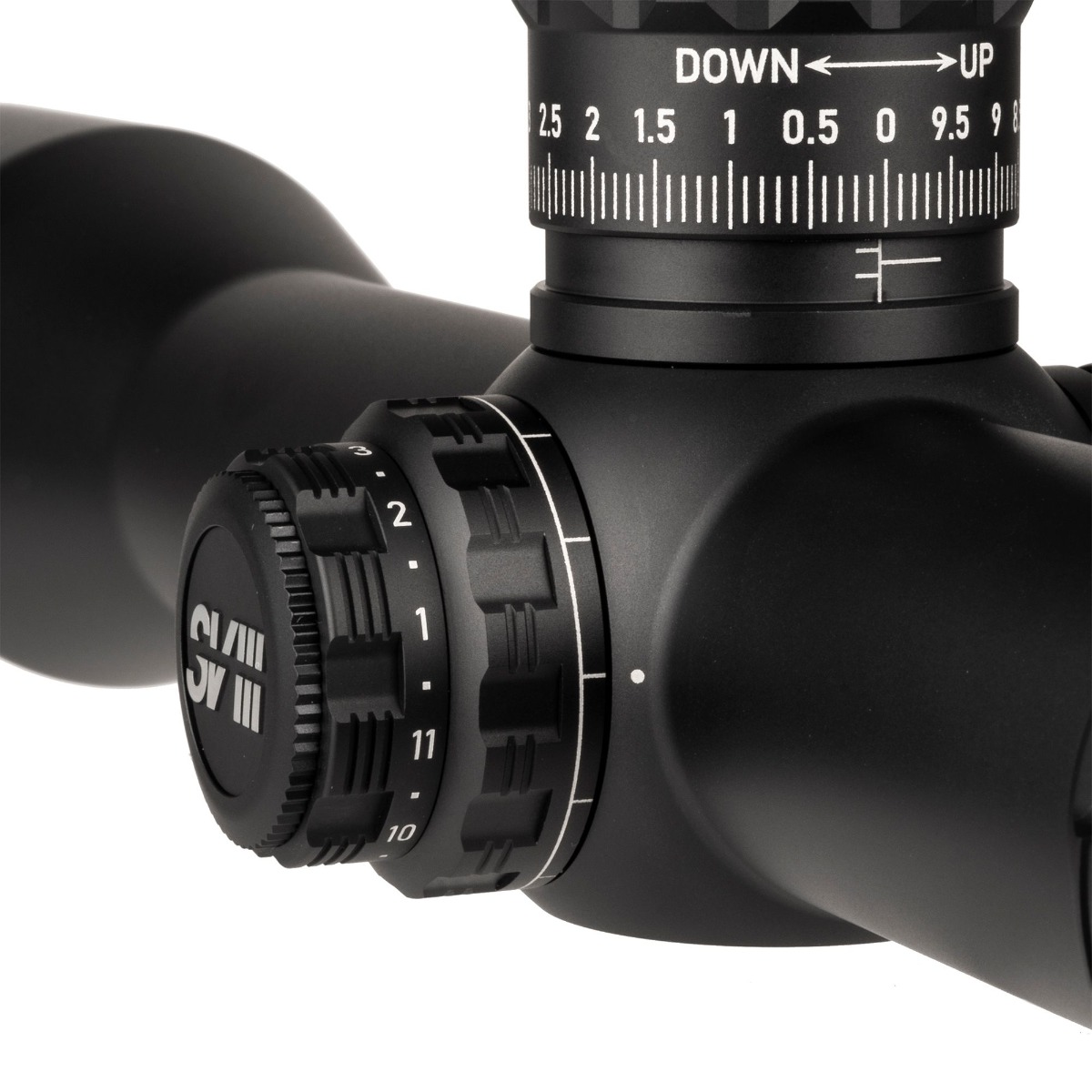

The Windage knob is marked for left and right so there is no second-guessing when making adjustments. The new internal zero-stop mechanism provides a tactile and audible positive stop for dead-on zero settings.
For superior performance, Sightron created a new MC-777 multi-coated lens coating for increased light transmission and improved clarity. Sightron’s patented ExacTrack Windage and Elevation system is standard on all models.

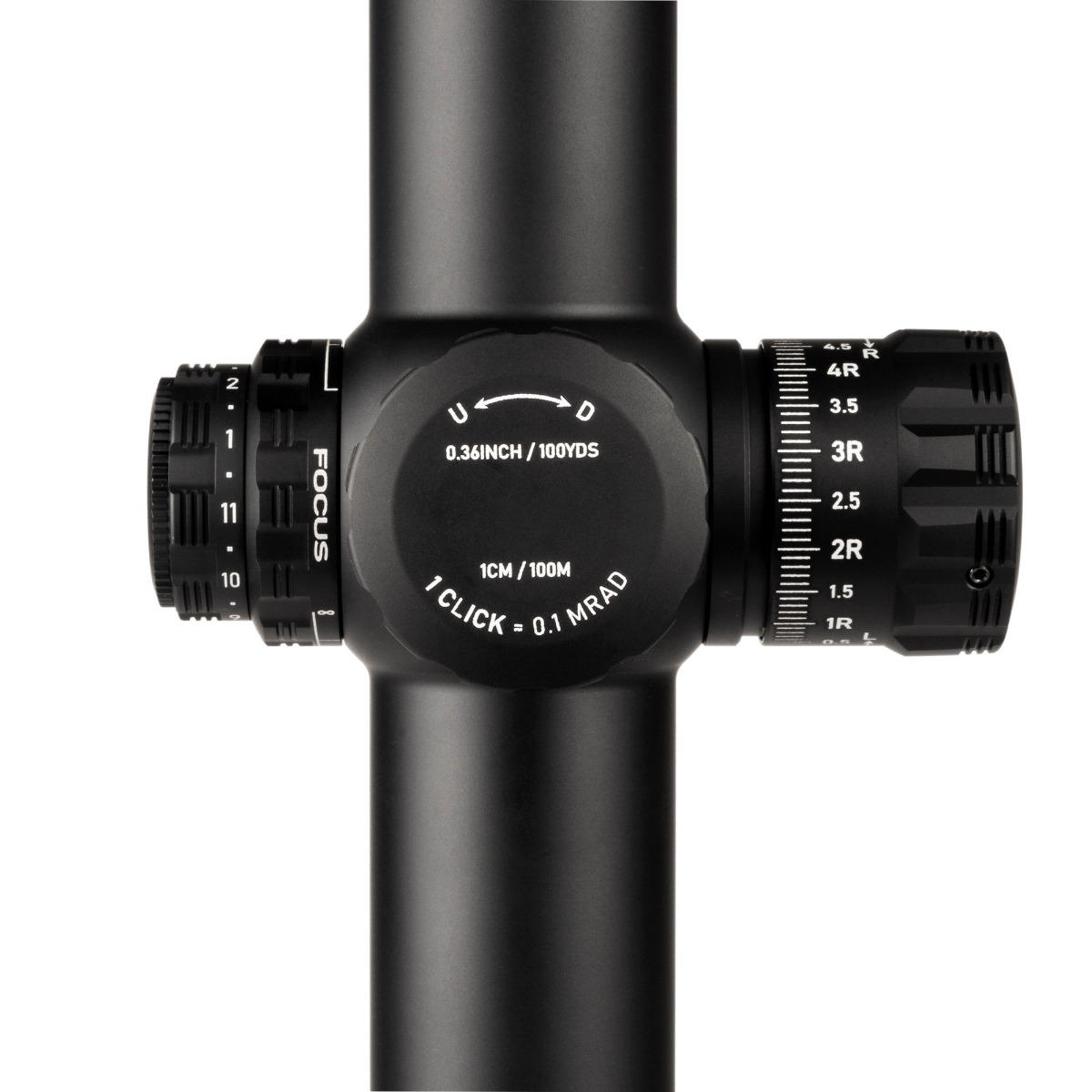

All reticles in this series are illuminated with a side-mounted 11 position off/on rotary type dial which uses the CR2032 Battery. The side-mounted focus system has been redesigned for improved minimum focus performance.

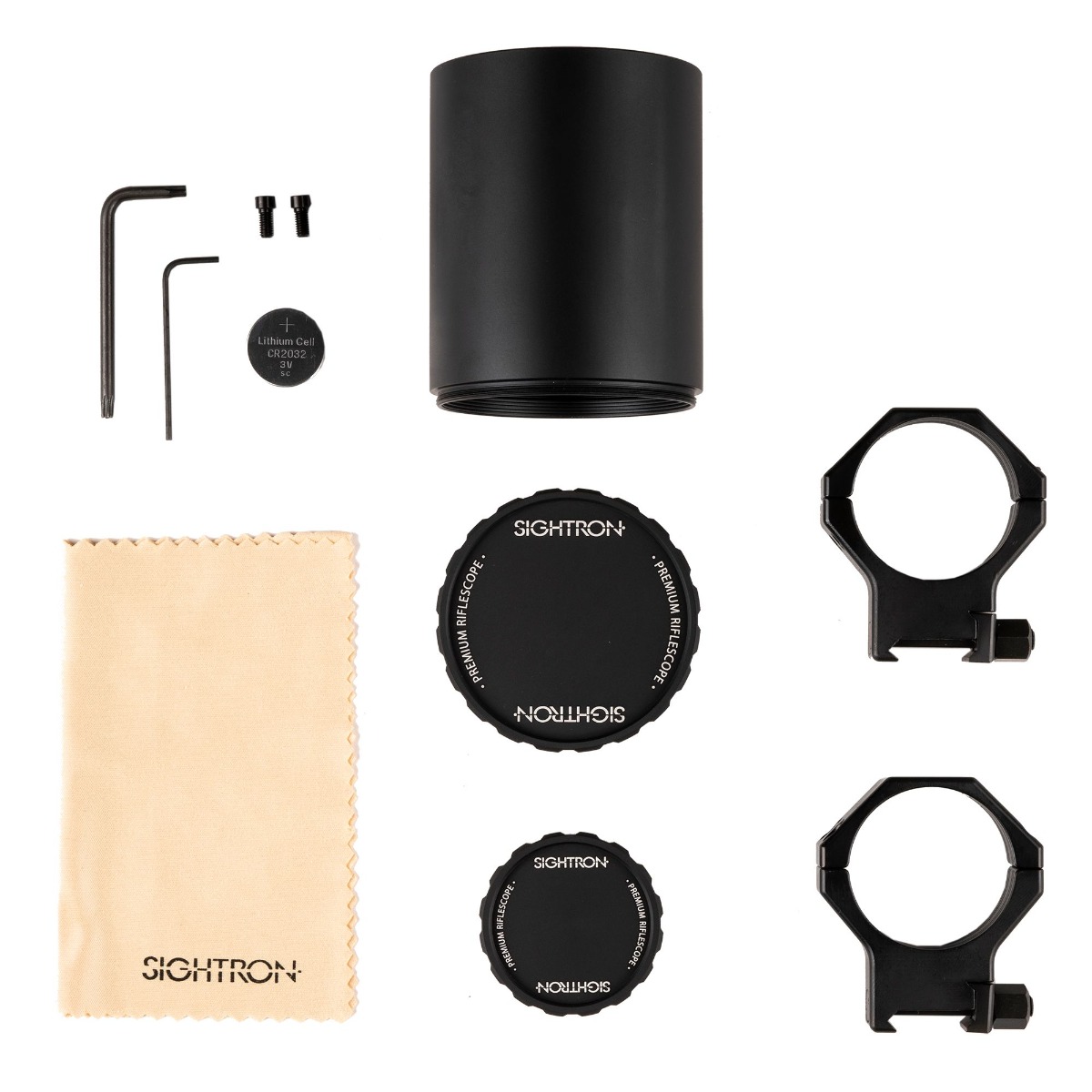

The SVIII 5-40x56 ED FFP LRM includes the following:
- Scope
- 3-inch Sunshade
- CR2032 Battery
- Screw-in Aluminum lens covers
- Allen wrench for knob and zero stop adjustments
- 40mm mount rings for Picatinny Rail
- Wrench T-15 for 40mm mount rings
- Lens Cleaning Cloth
| Magnification | 5-40x |
| Objective Lens Diameter | 56mm |
| Eye Relief | 3.8 - 3.7 inches |
| Field of View -Meters | 7.22m - .9m @ 100 meters |
| Field of View -Yards | 23.7 - 2.97ft @ 100 yds |
| Tube Size | 40mm |
| Turret Style | Tactical (Resettable) |
| Zero Stop | Yes |
| Click Value | .1 MRAD @ 100 meters |
| Minutes Per Revolution | 10 MRAD |
| Max Elevation Adjustment | 40 MRAD @ 100 meters |
| Max Windage Adjustment | 20 MRAD @ 100 meters |
| Parallax Setting | 10 meters to Infinity |
| Focus Type | Side Focus |
| Reticle Type | LRM IR |
| Focal Plane | First |
| Illumination | Yes |
| Finish | Matte Black |
| Waterproof | Yes |
| Anti-Reflection Tech | MC-777 Fully Multi-coated |
| Fog Proof | Yes |
| Length | 16.8 inches |
| Weight | 49.0 oz. |
| Sunshade | Included |
| Item Number | 29001 |
| UPC Code | 793139290014 |
| Model Name | SVIIISSED540X56FFPZSIRLRM |
| Instruction Manual (PDF) | DOWNLOAD |
| Reticle Instructions (PDF) | DOWNLOAD |
| ExacTrack W&E System | Never experience drift with Sightron's patented windage and elevation adjustment technology. It provides proper alignment between the adjustments and the erector tube by maintaining the same constant and accurate point of pressure at zero or extreme adjustments. |
| Exclusive Optical Design | Using the right materials for the right application, Sightron engineers build optical formulas around the best optical glass to reduce chromatic aberrations, improve color accuracy, deliver excellent light transmission, and best-in-class resolution and sharpness. |
| MC-777 Multi-Coating Technology | Exclusive 7 Layer multi-coating process employs a new and revolutionary lens coating technology applied to both surfaces of the lens for maximum anti-reflection performance and the highest light transmission. |
| First Focal Plane Reticle | The reticle size changes with the magnification setting. Reticle values remain constant in relation to your target. |
| Reticle Material | Etched Glass for a superior viewing experience |
| Shockproof | Built to withstand high caliber recoil and accidental impact |
| Waterproof | Rated at IPX7 waterproof standards |
| Fogproof | Nitrogen gas charged for a lifetime of fog-free use |
| Tube Construction | Milled from a single piece of lightweight, industrial-grade aluminum |

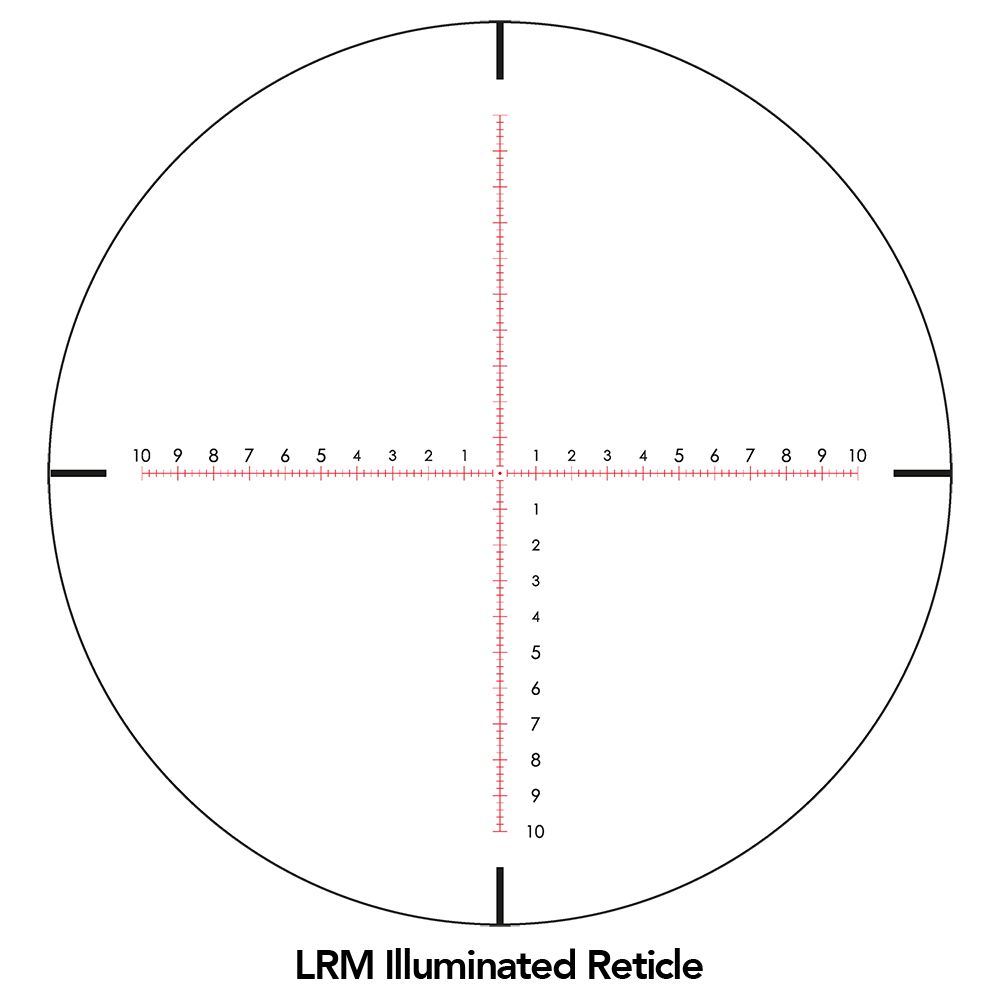

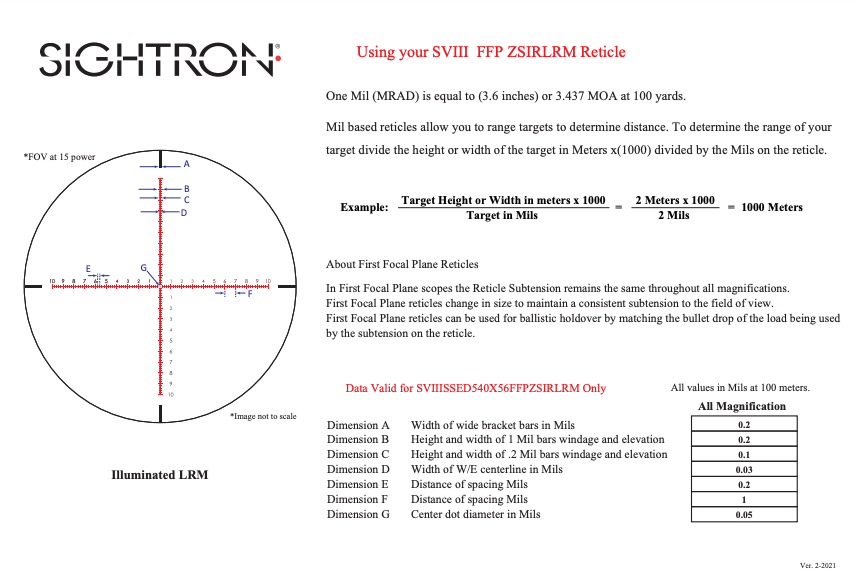

The illuminated LRM is a mil-hash reticle designed for the SVIII ED Series. It features a floating center dot with hash marks at .2 MIL spacing. The complete center section of the reticle offers daylight illumination with windage marks at full and half MIL elevations and is an excellent choice for extra-long range target shooting.

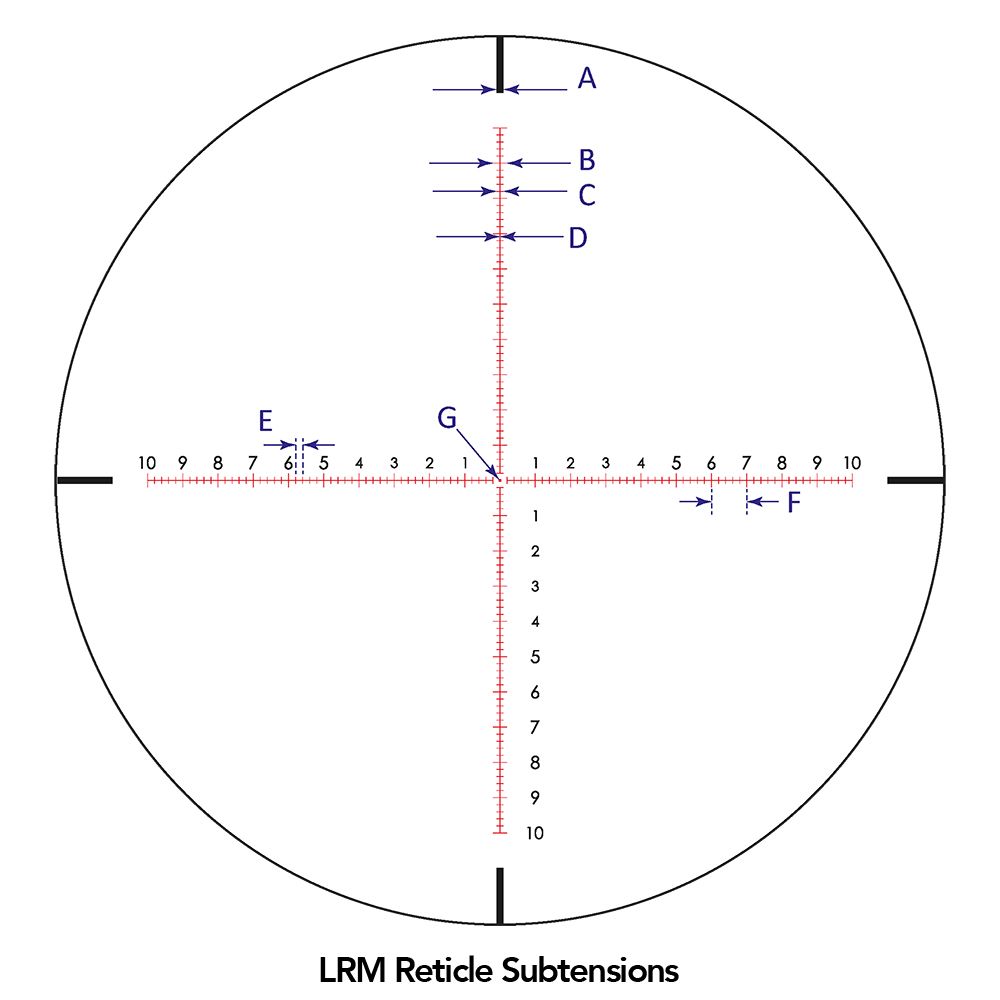

| A | B | C | D | E | F | G |
| .2 | .2 | .1 | .03 | .2 | 1 | .05 |
- Sightron Life Time Warranty
