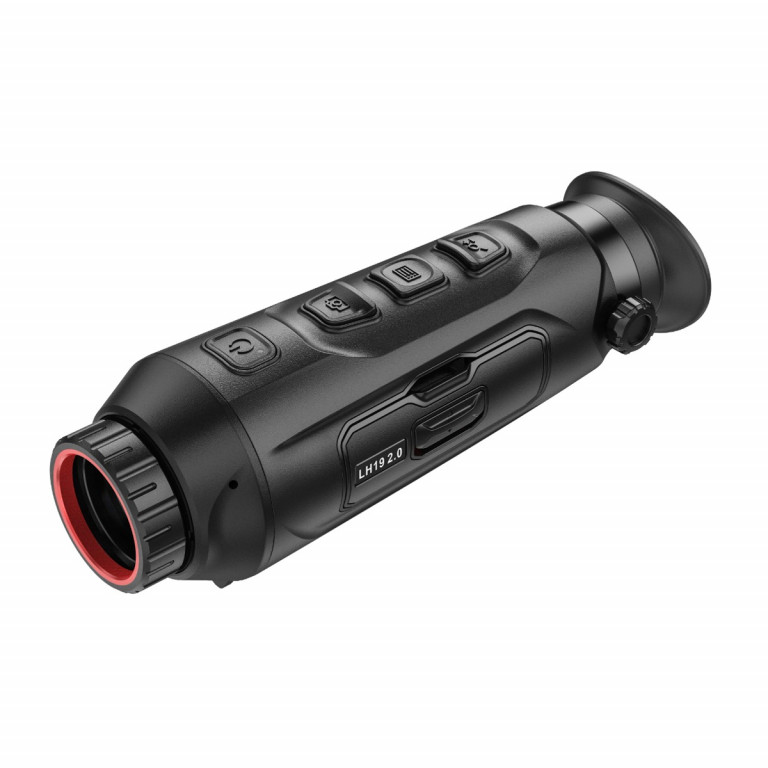

HIKMICRO Lynx 2.0 LH19 Smart Thermal Monocular - 19mm <20mK 384x288px 12μm
- The HIKMICRO Lynx 2.0 19mm is our biggest selling budget thermal monocular. It features an all new chassis design that now is now powered by a single 18650 battery.
- Equipped with an adjustable objective focus system
- The new Lynx 2.0 often called the mini Falcon comes with the brand new highly sensitive 384x288 12um thermal sensor with <20mk.
- Large OLED 0.39 inch display with a 1024x768 resolution
- This palm sized thermal imager weighs just 280g making it one of the most compact and powerful thermals on the market.
- Up to 6.5 hour run time.
Introducing the new Lynx 2.0 19mm thermal monocular. Sharing the same design philosophy, robust build quality and high performance thermal sensors as the class leading Falcon and Condor monoculars, the Lynx 2.0 redefines expectations from entry level thermal products.
High performance thermal – At the core of the Lynx 2.0 19mm is HIKMICRO’s latest generation, 384px Sub 20 mK NETD sensor that pairs with the advanced, F1.0 lens to detect very small changes in temperature and deliver an incredibly detailed image, even in the most challenging conditions. The 15mm Focal length offers 1.8x base mag with up to 8x digital magnification giving you 1.8-14.4x magnification range.
Compact and powerful - Built on a robust magnesium-alloy chassis, the Lynx 2.0 has a distinctly premium feel from the first time you pick it up. The updated chassis design also features a removable 18650 battery delivering up to 6.5 hours of run time. The ergonomic buttons fall easily to hand and allow you to intuitively take control of the main features, even in complete darkness. The large OLED screen gives a great view of your surroundings while the soft eyecup prevents unwanted light spill.
Digital connectivity – The Lynx 2.0 is supplied with the latest HIKMICRO software which gives you fast access to commonly used options like brightness and contrast and allows you to add a PIP screen to your monocular. The Lynx 2.0 offers a choice of four thermal colour profiles, the ability to record pictures or video and WiFi to allow you to connect, stream and control from the HIKMICRO sight app.
The lower the NETD value, the better the imaging
Thermal imaging works by sensing tiny differences in temperature, and the more sensitive the sensor is to minute contrasts, the better and more clear the image in the viewfinder. Lynx 2.0’s sub 20mK NETD sensors capture the sharpest, most informative images, even in challenging conditions; this means that you can not just find the heat of people, animals and birds, but capture the detail of the surroundings to aid identification.
Convenience is king
The Lynx 2.0 has been redesigned to maximise convenience in every area. The size and weight, at under 175mm in length and under 300g with battery, combine with the rugged build and comfortable rounded shape to produce a powerful device that can easily be carried and used at all times. The new power system uses industry-standard rechargeable 18650 batteries for a continuous run-time of up to 6.5 hours, which can be renewed by a quick switch of the battery to a (supplied) spare. Lynx 2.0 also features a 3 second Fast Boot time, to easily keep pace with the action in the field.
Integrated phone or tablet hotspot
HIKMICRO’s Sight App links Lynx 2.0 to your phone or tablet, creating a second display and adding functionality: You can control the device via the app, view and share recorded images and video, share the thermal view with others in your group, and control and update the software settings.
The Lynx 2.0 is the perfect, versatile companion device for hunting, ecological survey, wildlife observation, search & rescue and security applications. The affordable price, high performance and robust, proven build make it a natural choice and it seems well set to take over the best-seller crown from its much-loved predecessor.
- Image Sensor VOx Uncooled Focal Plane Arrays
- Max. Resolution 384 × 288
- Frame Rate 50 Hz
- Pixel Interval 12 μm
- Response Waveband 8 μm to 14 μm
- NETD Less than 20 mK (@25°C), F# = 1.0
- Lens (Focal Length) 19 mm, f1.0
- Focus Mode Focus Ring
- Detection Range 900 m
- Min. Focusing Distance 1.9 m
- Magnification 1.8x to 14.4x (8x)
- Field of View(H × V), Degrees / m @100m 13.7° × 10.3°/24.0 m × 18.0 m
- Display 1024 × 768, 0.39 inch, OLED
- Palettes Black Hot, White Hot, Red Hot, Fusion
- FFC (Flat Field Correction) Mode Auto, Manual, External Correction
- Exit Pupil 6 mm
- Eye Relief 20 mm
- Diopter (Range) -5 D to +3 D
- Brightness Adjustment Yes
- Tone Adjustment Cold, Warm
- Contrast Adjustment Yes
- System Features
- Record Video Yes
- Capture Snapshot Yes
- Audio Recording Yes
- Standby Mode Yes
- Storage Built-in EMMC (16 GB)
- PIP Yes
- Hotspot Yes
- Hot Track Yes
- Distance Measurement Yes
- Battery Type Replaceable and Rechargeable Li-ion Battery
- Battery Operating Time 6.5-hour continuous running with CVBS and hotspot function off (@25°C)
- Type-C Power Supply 5VDC, 2 A
- Supports External Power Supply
- Protection Level IP67
- Dimension 172.5 mm × 56.0 mm × 60.8 mm
- Weight 282 g without battery
- Working Temperature -30°C to +55°C
- High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
- 384 × 288 resolution with 12μm detector
- 1024 × 768 resolution 0.39-inch OLED display
- Replaceable and rechargeable Li-ion battery
- 280 g lightweight, with a compact and ergonomic design
- Up to 6.5 hours of continuous operation
- 3 Year Warranty
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
